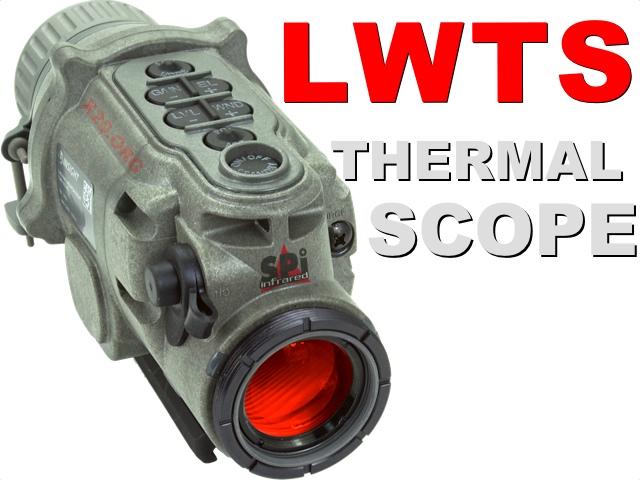

The long awaited succesor to the Insight Technology CNVD-T is here. The LWTS is the commercial version of the US Army TWS Program AN/PAS-13G Thermal Weapon Sight. The unit features 640x480 resolution thermal sensor and the legendary performance of the Insight Technology Clip On Thermal Scope product family. The L3 LWTS can be used as a clip on scope or as a stand alone thermal rifle scope.
L3 LWTS FIRST VIDEO

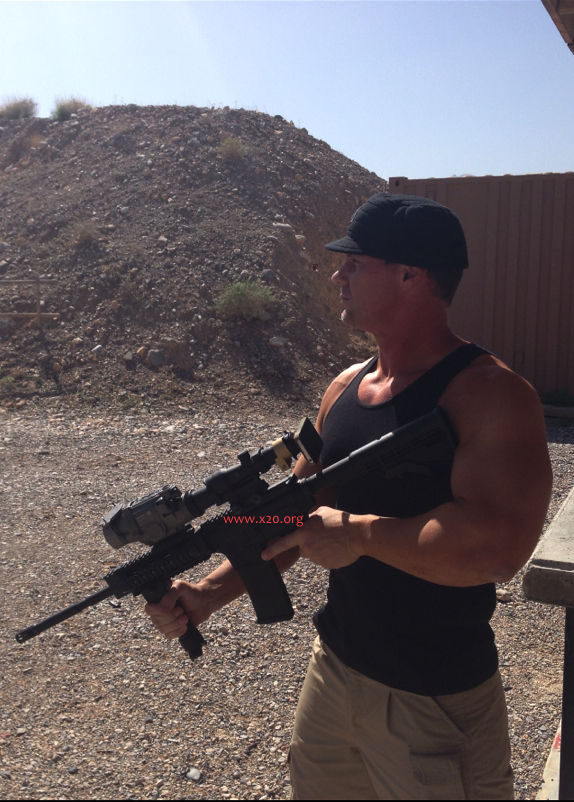

The first video posted of the production models of the L3 LWTS thermal rifle scope. The Video shows you the basic settings on the LWTS scope and includes samples of stand alone and clip on performance. Live firing on an M4/AR15 rifle platform at our test range in the Nevada Desert. Very demanding conditions for a thermal imager but the LWTS handles tough conditions better than any other thermal scope we have tested. See for yourself what all the fuss is about.
L3 LTWS Thermal rifle scope video

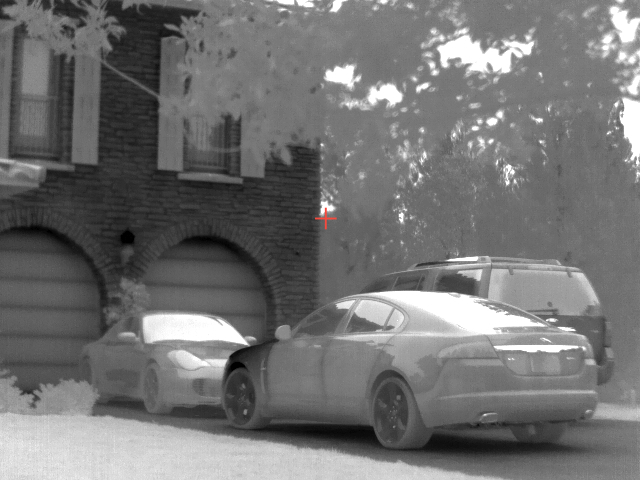

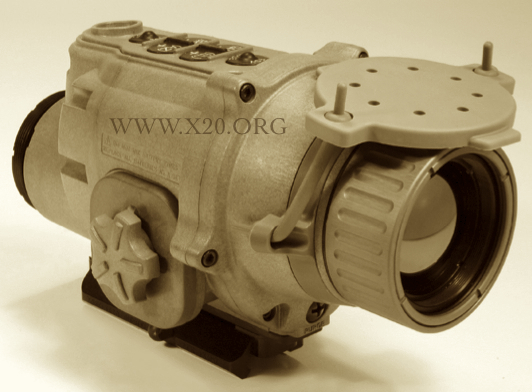

The X27 HD (LWTS) is a handheld and weapon mounted thermal weapon sight. The thermal imaging capability of the X27-HD allows for long wave infrared observation and target identification under adverse conditions including light rain, smoke, light snow, and low light to total darkness. The X27-HD utilizes leading edge 17 micron technology in a 640 x 480 uncooled micro bolometer. The high resolution display, combined with state of the art image processing and electronics provide exceptional imagery and long mission run times on a single battery load.The X27 HD Thermal scope offers a single FLIR sight solution for a variety of mission applications. The unit is ideal for law enforcment, military, hog hunting and a wide array of commercial and industrail applications.Unlike other thermal imaging scopes, the X27HD is based around the AN/PAS-13 G varient thermal weapon sights that was recently chosen by the United states Department of Defense for use by the US armed forces. Being selected as the premier thermal weapon sight by the Military makes the unit the top of the line pinnacle in thermal scopes and outperforms all other commercial grade systems, in Size, Weight and Performance.
Clip on, stand alone and hand held high resolution, high definition thermal image quality.
Based around the US Military AN/PAS-13 G Varient thermal weapon sight L3-LTWS program
1x to 15x zoom capability
640 x 480 17μm uncooled micro bolometer
Enhanced thermal imaging image quality
RS-170 Real Time Video In/Out for remote viewing
Integrated Shutter and Non-Uniformity Calibration
Dedicated standalone capability w/4 Integrated Ballistic Weapon Reticles Boresightable to better than 1 MOA
Crisp Thermal imagery with percision sighting capabilities for Short, Medium and Long range Acquisition.
Can be used as a high resolution Hand held thermal viewer

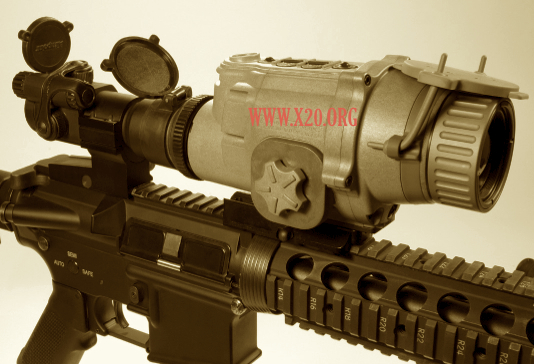

Works with virtually any day scope and instantly transforms into Thermal night vision without Rezero
Field maintainable
ADDITIONAL PARAMETERS;Dimensions: 6” L x 3” W x 3” H
Weight: 1.85lbs
Battery Type: 4 AA
Battery Life: 10 Hrs +
Field of View: selectable
Magnification: 1x to 15x Depending on dayoptic
Resolution; 640x480 LWIR at 17 UmReticles: User SelectableHousing: Military gradeExport: NO, for use in USA by US citizens.
THIS ITEM IS AVAILABLE FOR US CITIZENS FOR UNITED STATES END USE ONLY, NO EXPORT!
